Why a Drain Camera Matters in 2026

An inspection camera for drains isn't a luxury anymore — it's become standard kit for anyone managing property or working in the trades. I've seen too many situations where a £200 camera saved someone a £3,000 excavation bill. That's not hyperbole. That's Tuesday in Belfast.

The UK drainage industry has shifted dramatically this spring. New HSE confined space regulations mean fewer workers are entering manholes for visual inspections. Remote camera systems have gone from "nice to have" to essential compliance tools. Whether you're a plumber diagnosing a blocked lateral drain or a facilities manager surveying 200 metres of stormwater pipe beneath a car park, the right pipe inspection camera saves time, money, and — honestly — a fair bit of stress.

The market's flooded with options though. Cheap endoscope cameras from online marketplaces sit alongside £15,000 crawler rigs. So how do you pick? That's what this guide sorts out.

Types of Inspection Camera for Drains: A Clear Breakdown

There are three broad categories of drain inspection equipment available to UK buyers right now. Each serves a different purpose, pipe diameter, and budget.

Handheld Endoscope Cameras

These are your entry point. A handheld endoscope camera with screen typically features a 4.3–5 inch display, a semi-rigid cable between 3–10 metres, and a camera head around 5.5–8.8mm diameter. They're brilliant for short domestic runs — sink traps, toilet connections, and soil pipes up to about 5 metres deep. You won't survey a 50-metre sewer with one, but for quick diagnostics? Spot on.

The Sanyipbores dual-lens inspection camera is a solid example: a 4.5-inch IPS screen, dual-lens HD optics, and a 5-metre semi-rigid cable. It handles 90° bends in 40mm+ pipework without fuss.

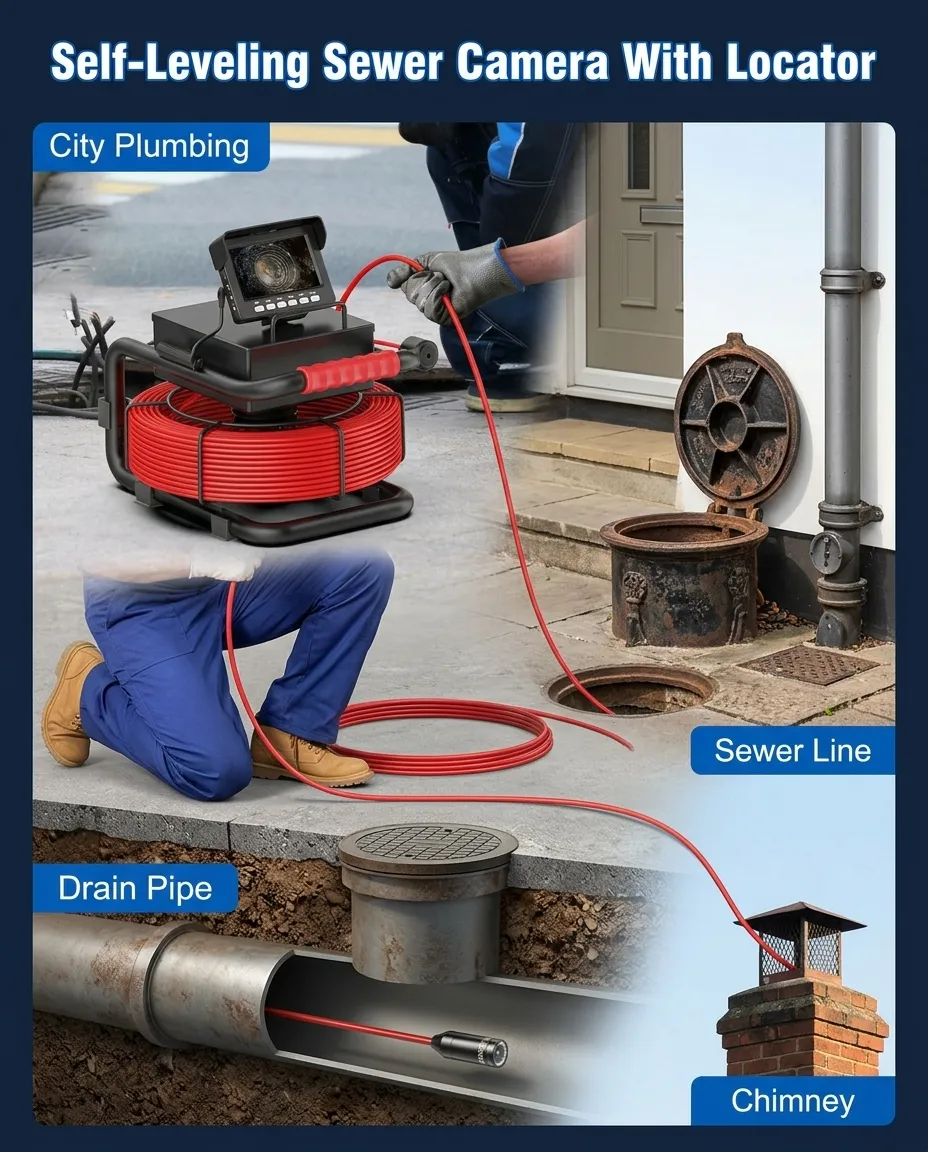

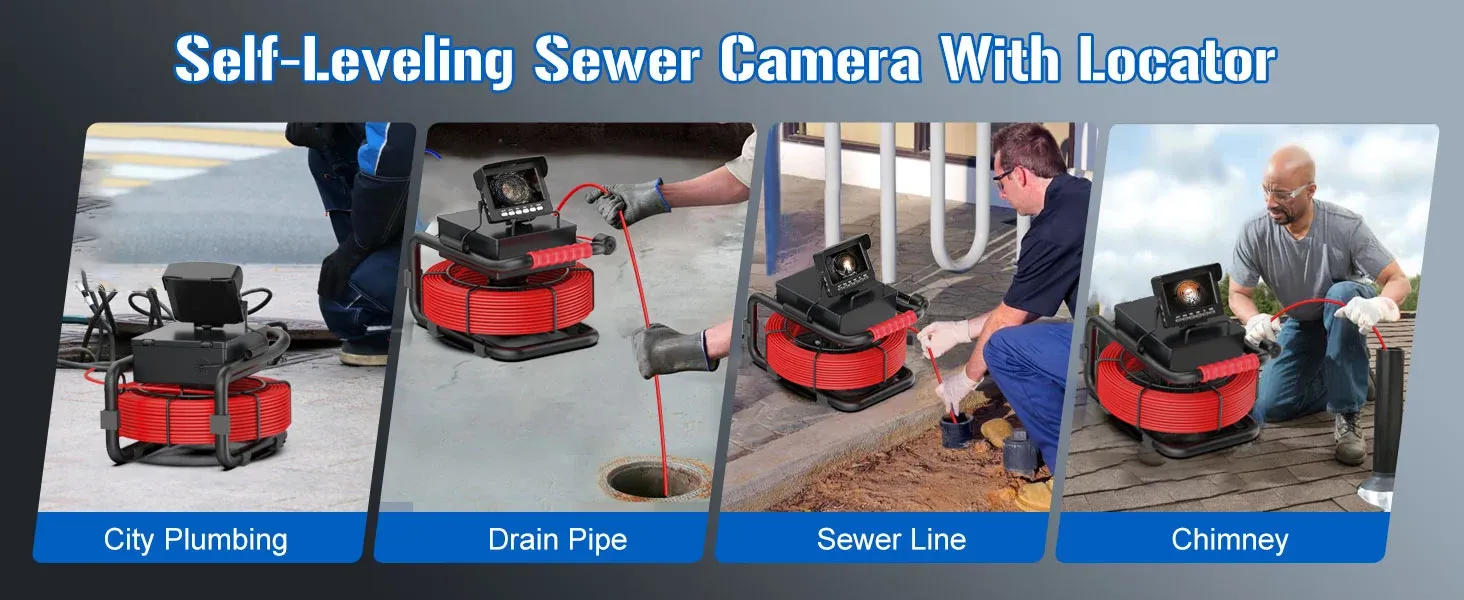

Push-Rod CCTV Drain Cameras

The workhorse of the drainage industry. A CCTV drain camera uses a fibreglass push-rod (typically 20–60 metres) with a larger camera head — usually 23mm diameter — mounted on a reel system with a 7–10 inch monitor. These handle pipes from 50mm up to 300mm diameter. Recording capability via SD card is standard. Most professionals I know won't attend a job without one.

Push-rod systems from Sanyipbores range from 20m to 40m cable lengths, with IP68-rated camera heads that survive full submersion — because let's be honest, drains aren't dry environments.

Crawler-Mounted CCTV Systems

For large-diameter pipes (300mm–2000mm+), you need a motorised crawler. These robotic units drive through the pipe on tracked wheels, carrying pan-and-tilt cameras with powerful LED arrays. They're controlled remotely and can survey hundreds of metres in a single run. Price? Anywhere from £8,000 to £50,000+. They're not for everyone — but for drainage contractors and local authorities, they're indispensable.

Key Specifications That Actually Matter

Spec sheets can be overwhelming. Here's what genuinely affects performance in the field — and what's just marketing fluff.

Camera Resolution and Sensor Type

Look for a minimum of 720p (1280×720 pixels). Anything below that and you'll struggle to identify hairline cracks or joint displacement. The better industrial endoscope camera units now offer 1080p with CMOS sensors. A 1/3" CMOS sensor at 23mm head diameter gives you a 120° field of view — wide enough to see pipe walls without excessive distortion.

Cable Length and Rigidity

Match cable length to your typical job. A 5-metre cable handles domestic waste pipes. A 30-metre fibreglass rod covers most residential lateral drains. Going beyond 40 metres? You'll want a powered reel to avoid fatigue.

Semi-rigid cables handle bends better in small-bore pipes. Fibreglass rods push further but need wider diameters (75mm+) to negotiate turns without jamming.

IP Rating and Build Quality

IP68 is the minimum for any camera head entering a drain. That means continuous submersion beyond 1 metre depth. The monitor itself should be at least IP54 for splash resistance on site. I've seen cheaper units with IP67 camera heads fail after six months of regular use — the seals just aren't built for repeated thermal cycling between cold pipes and warm vans., a favourite among Britain’s tradespeople

Lighting

Drains are pitch black. You need adjustable LED illumination — typically 6–12 white LEDs around the camera head. Adjustable brightness matters because over-lit reflective surfaces (glazed clay pipes, for instance) wash out completely on screen. The best industrial inspection cameras offer variable intensity from 0–100%.

Drain Inspection Camera Comparison: 2026 Buyer's Table

I've put together this comparison based on the most common system types available to UK buyers this spring. These represent typical specifications across each category — not a single brand, but what you should expect at each price point.

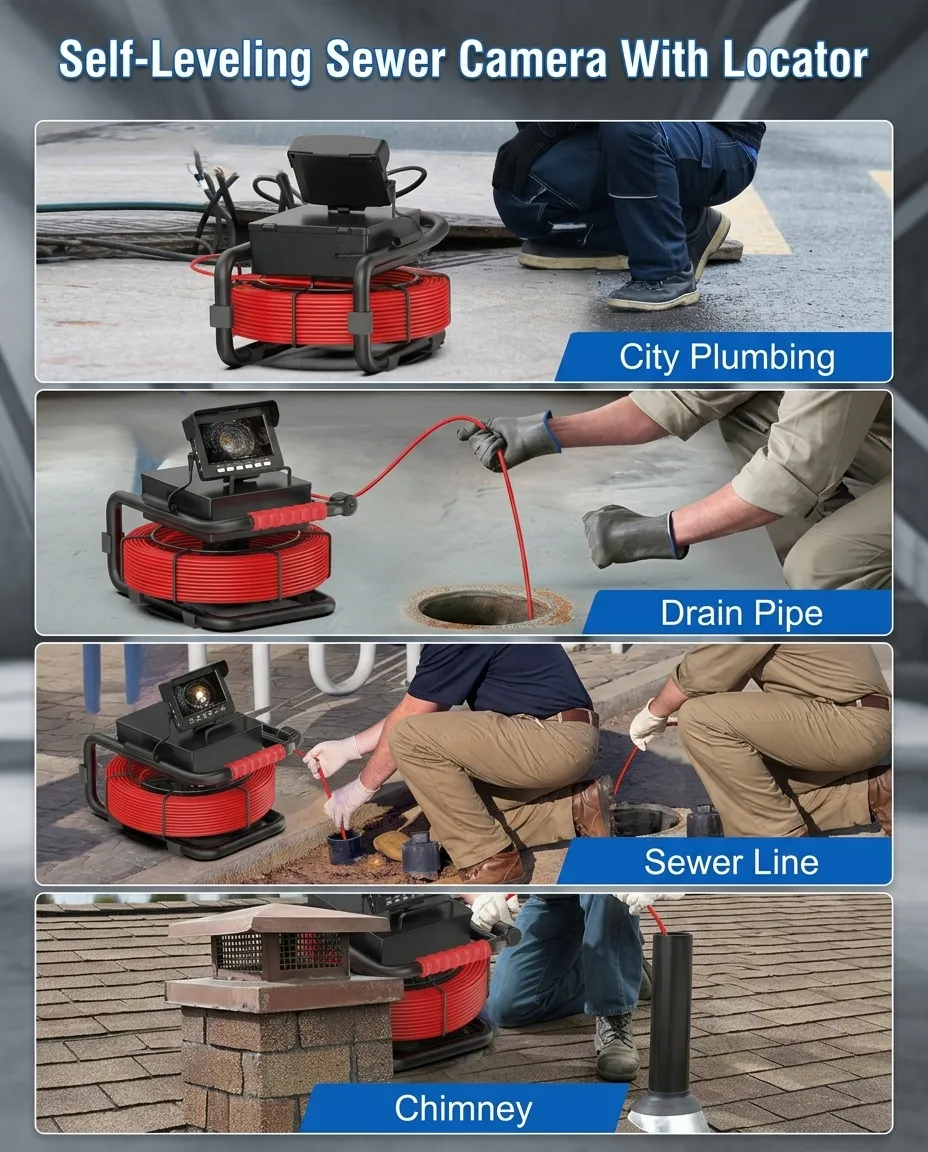

Choosing the Right Inspection Camera for Drains: A Decision Framework

The right system depends on three things: pipe diameter, survey distance, and how often you'll use it. Simple as that.

Domestic Property Managers

If you're managing residential lets or checking your own property's drainage, a handheld borescope inspection camera with 5–10 metres of cable covers 90% of situations. You're looking at blocked kitchen wastes, checking soil pipe connections, maybe inspecting a short run to the inspection chamber. A unit like the sanyipbores 4.5-inch dual-lens camera gives you HD clarity in pipes as small as 40mm — and it fits in a toolbox.

Worth the extra spend on dual-lens? Absolutely. The forward-facing lens shows what's ahead; the side-facing lens shows pipe wall condition. That's the difference between spotting a blockage and spotting the root intrusion that caused it.

Professional Plumbers and Drainage Engineers

You need a 20–30m push-rod system. No question. A sewer inspection camera with a 23mm head, 7" monitor, and recording capability is your bread and butter. The recording matters — customers want evidence, insurance companies demand it, and you'll want footage to quote remedial work accurately. (If you've ever tried to explain a cracked pipe joint to a sceptical landlord without video, you'll know exactly why.)

I'd recommend the Sanyipbores pipe inspection camera range for professionals who need reliability without the £2,000+ price tag of some branded alternatives. The 30m variant handles most residential laterals from property to main sewer.

Drainage Contractors and Utilities

If you're surveying pipes above 300mm diameter or running CCTV surveys to BS EN 13508-2 coding standards, you'll need either a long-reach push-rod system or a crawler. Crawlers become essential above 600mm diameter where push-rods can't maintain wall contact for proper defect identification.

When You Need a Crawler System

Crawler systems are a different beast entirely. They're motorised robots — tracked or wheeled — that drive independently through large-diameter pipes carrying pan-tilt-zoom cameras.

What Crawlers Do That Push-Rods Can't

A crawler maintains consistent camera positioning regardless of pipe gradient. It can reverse, stop, and rotate its camera head 360° to examine defects from multiple angles. The better units achieve positional accuracy of ±0.5mm at 50m distance using onboard odometers. That precision matters when you're coding defects for rehabilitation planning.

They also handle distances that would exhaust any push-rod operator. A typical crawler survey covers 150–200 metres per setup, with some systems reaching 500m+ on a single cable run.

The Cost Reality

Let's be straight about this. A basic crawler system starts around £8,000 for a refurbished unit. New, purpose-built rigs from established manufacturers run £15,000–£50,000 depending on camera specification and control software. That's serious capital expenditure.

For most drainage companies, the break-even point is roughly 3–4 crawler surveys per week. Below that frequency, subcontracting crawler work to a specialist makes more financial sense — though that calculation shifts if you're also using the crawler for pre-purchase surveys, which command premium fees of £400–£800 per survey in most UK regions., popular across England

Alternatives to Full Crawler Investment

Some manufacturers now offer "semi-crawler" systems — essentially motorised camera transporters that fit 150–600mm pipes at a fraction of crawler cost (£3,000–£6,000). They lack full pan-tilt-zoom but provide stable footage in pipes too large for comfortable push-rod work. Decent middle ground for growing businesses.

Maintenance and Longevity: Protecting Your Investment

An inspection camera for drains works in genuinely hostile conditions. Sewage, chemicals, abrasive grit, temperature extremes. Without proper care, even a £1,500 system degrades fast.

After Every Use

Flush the camera head and cable with clean water. I keep a 5-litre garden sprayer in the van specifically for this — cheap as chips and it's saved the cable on more than one occasion. Dry the cable before reeling — moisture trapped on a reel breeds mould and degrades fibreglass over time. Check the LED ring for cracks or condensation behind the lens.

Monthly Checks

Inspect cable connections for corrosion. Test the IP68 seal by submerging the camera head in clean water for 30 minutes and checking for moisture ingress on the lens. Calibrate the distance counter if your system has one — a 2% drift over 30 metres means you're 600mm off when locating a defect for excavation. That's the difference between digging in the right spot and destroying a perfectly good section of pipe.

Storage

Store units in a dry environment between 5–25°C. Lithium batteries in portable units should be kept between 40–80% charge for long-term storage. Never leave a borescope camera in a cold van overnight during winter — repeated freeze-thaw cycles crack LCD screens and degrade cable flexibility.

Key Takeaways

• Match cable length to job type: 5m for domestic waste pipes, 20–30m for residential laterals, 40m+ for commercial drainage runs.
• IP68 waterproofing on the camera head is non-negotiable for any unit entering a live drain — IP67 isn't sufficient for submersion.
• Dual-lens cameras (forward + side-facing) provide significantly better defect identification than single-lens units in pipes under 100mm.
• Crawler systems become cost-effective at 3–4 surveys per week; below that threshold, subcontracting is more economical.
• Recording capability is essential for professionals — insurance claims, customer reports, and accurate quoting all depend on footage.
• Budget at least £200–£300 for a reliable professional handheld unit; £600–£1,500 for a full push-rod CCTV system with monitor and recording.
• Proper maintenance extends lifespan 2–3× — flush after every use, check seals monthly, and store between 5–25°C.
