What Does a Drain Camera Inspection Cost in the UK?

The typical drain camera inspection cost in the UK ranges from £95 to £350 per visit, depending on location, pipe length, and complexity. In London and the South East, expect to pay £150–£350 for a standard CCTV drain survey. Outside the M25, prices drop to £95–£200 for most residential jobs.

I've had three separate surveys done on a property I help manage — two in Belfast and one in Manchester. The Belfast quotes came in at £120 and £145. Manchester was £175. Not extortionate for a one-off, but the costs stack up fast if you're dealing with recurring drainage issues or managing multiple properties.

These figures align with guidance from Which?, who recommend getting at least three quotes for any drainage work. Sound advice. But here's the thing — if you're a tradesperson, landlord, or facilities manager calling out surveyors more than twice a year, the maths starts pointing firmly toward owning your own kit.

Professional CCTV Drain Surveys vs Owning Inspection Equipment

Hiring a professional makes sense for one-off diagnostics. Owning an industrial endoscope camera or dedicated sewer inspection camera makes sense for repeated use — and the break-even point arrives sooner than most people think.

When to Hire a Professional

If you need a formal report for insurance, a homebuyer's survey, or legal documentation, a certified drainage engineer is the right call. Their reports carry weight with insurers and solicitors. They'll also have crawler-type CCTV systems for pipes over 150mm diameter that most handheld units can't match.

When Owning Equipment Pays Off

For tradespeople doing regular maintenance checks, property managers overseeing multiple sites, or plumbers wanting to offer drain diagnostics as an add-on service — buying a quality pipe inspection camera pays for itself within 3–5 jobs. Honestly, I've seen colleagues recoup their investment in a single month during winter when blocked drains are practically a daily occurrence.

The Health and Safety Executive recommends visual inspection of confined spaces and drainage systems as part of routine maintenance protocols. Having your own equipment means you can conduct these checks on your schedule, not someone else's.

Types of Pipe Inspection Camera Systems Explained

Not all inspection cameras are built for the same job. The market splits into three broad categories, each suited to different pipe diameters, access requirements, and budgets.

Handheld Endoscope Cameras with Screen

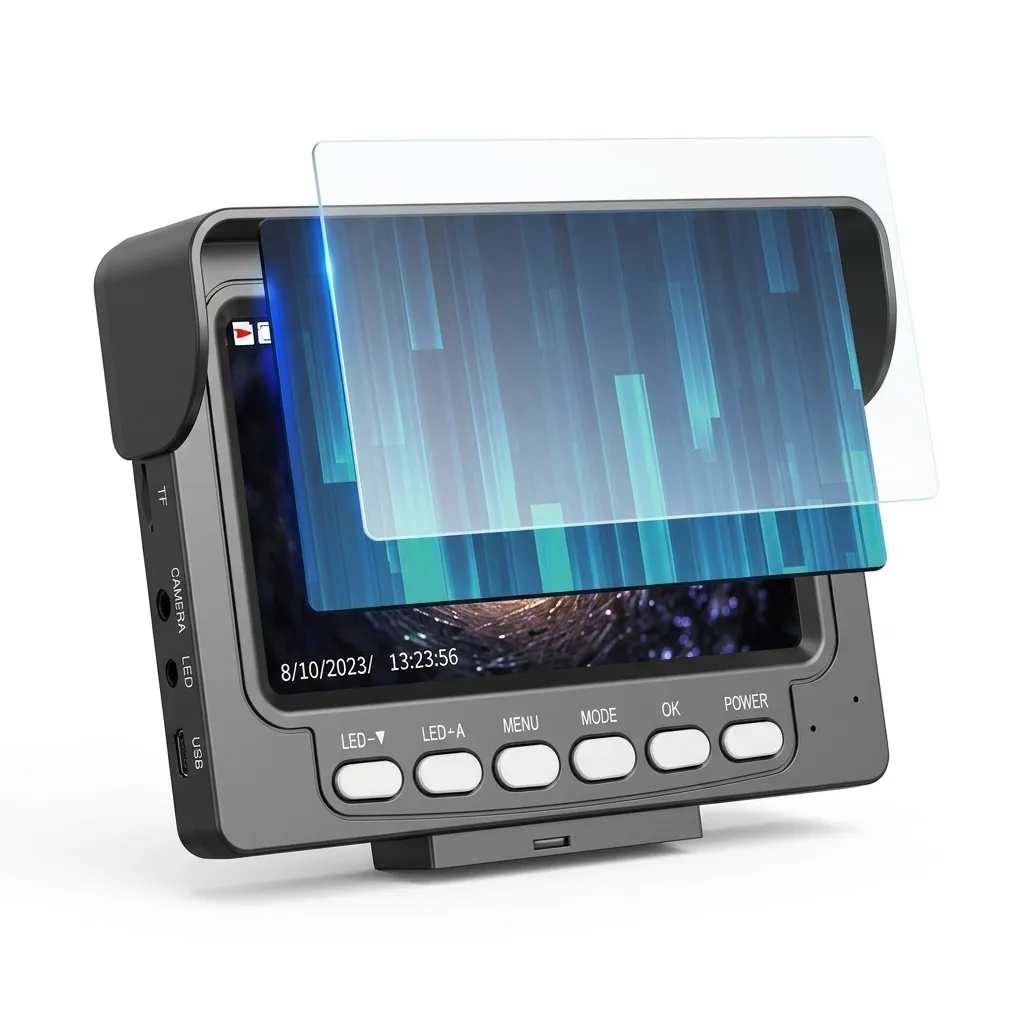

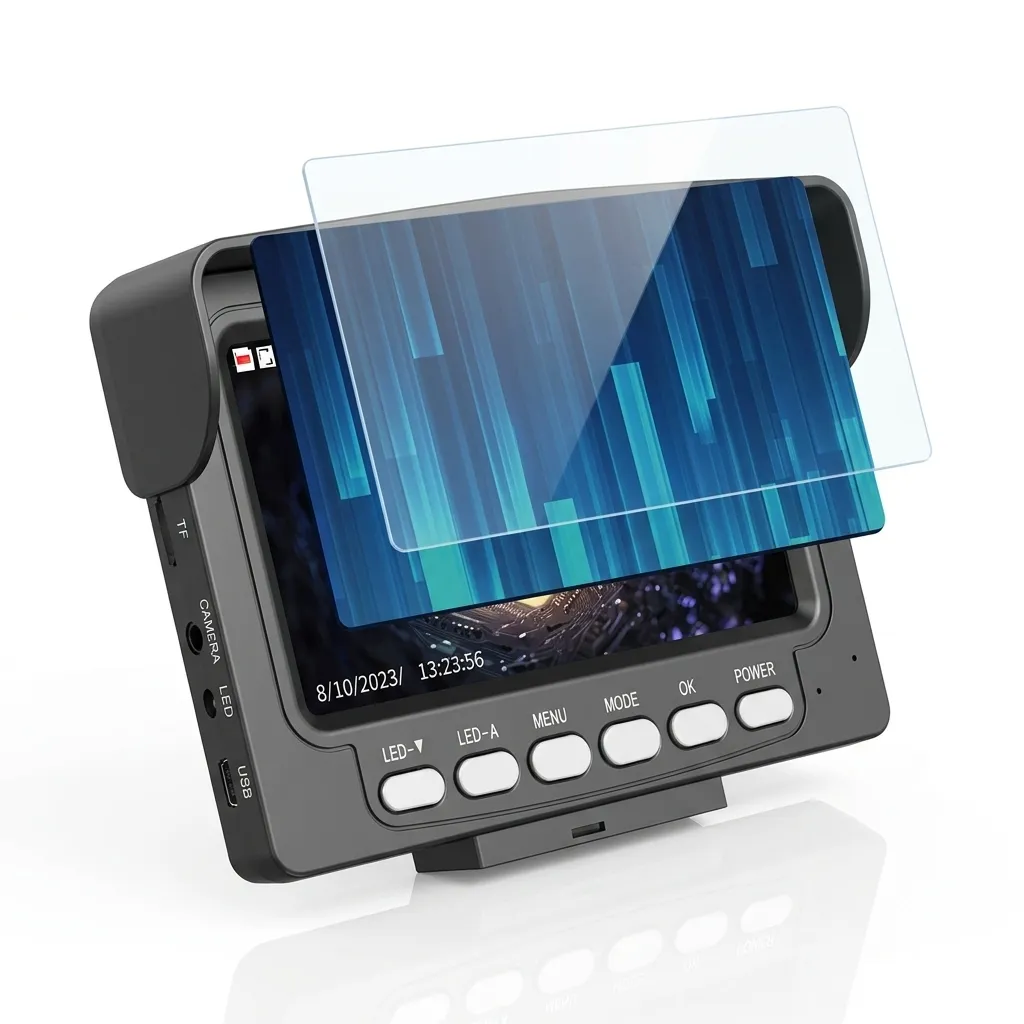

These are your entry point for visual pipe diagnostics. A decent endoscope camera with screen gives you real-time viewing on a built-in IPS display — no phone connection needed, no app crashes mid-inspection. Cable lengths typically run 2–10 metres, making them ideal for short runs, toilet waste pipes, and behind-wall checks.

The sanyipbores range includes a high-definition 4.5-inch IPS inspection camera with dual lenses and a 5-metre semi-rigid cable. That dual-lens setup is brilliant for switching between forward-facing and side-viewing without withdrawing the probe. This type works well for anyone doing regular boiler flue checks, short drain runs, or automotive diagnostics alongside plumbing work.

Dedicated Drain Inspection Cameras (20m–40m)

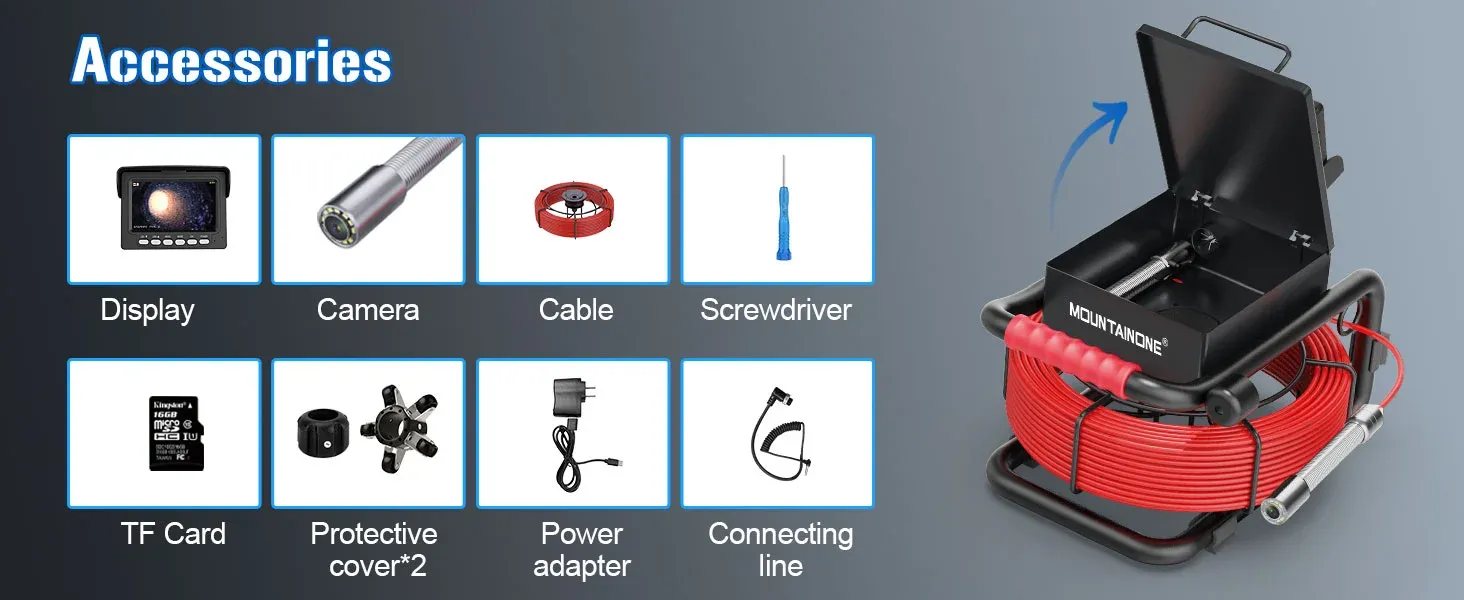

For serious drainage work, you need reach. A 30-metre drain inspection camera handles most residential lateral drains and even some shared sewers. These systems typically feature a Φ23mm camera head, fibreglass push-rod cable, and a 7-inch monitor with recording capability.

Worth the extra spend? Absolutely — if drainage is a regular part of your workload. The recording function alone saves arguments with customers about what's actually happening underground.

Industrial Borescope Inspection Cameras

An industrial borescope sits between the handheld endoscope and the full drain rig. These are precision instruments — articulating tips, tungsten braiding on cables, and image resolution that lets you spot hairline cracks at distances of 10+ metres. They're used across aerospace, automotive, and heavy engineering as much as plumbing.

A quality borescope with screen from a specialist supplier like sanyipbores offers industrial-grade optics without the £3,000+ price tag of legacy brands. That's where the market has shifted dramatically this spring — and it's genuinely changed what's accessible to smaller operators.

Drain Camera Inspection Cost: Services vs Equipment Investment

Here's the comparison that actually matters — what you'll spend over 12 months hiring professionals versus what a one-time equipment purchase costs.

The numbers speak for themselves. Even at the lower end of professional fees, you're looking at break-even within 4–6 call-outs if you buy a mid-range system. For London-based property managers? Two surveys and you've already saved money.

Choosing the Right Industrial Inspection Camera for Your Needs

The "best" system depends entirely on what you're inspecting, how often, and what diameter pipes you're dealing with. There's no universal answer — but there are clear guidelines.

Cable Length and Pipe Diameter

Match your cable to your typical job. A 5-metre semi-rigid cable handles sink waste, soil stacks, and short lateral connections. For main drains running from property to sewer, you'll want 20–30 metres minimum. The sanyipbores drain inspection camera range covers both ends of this spectrum.

Screen Quality and Recording

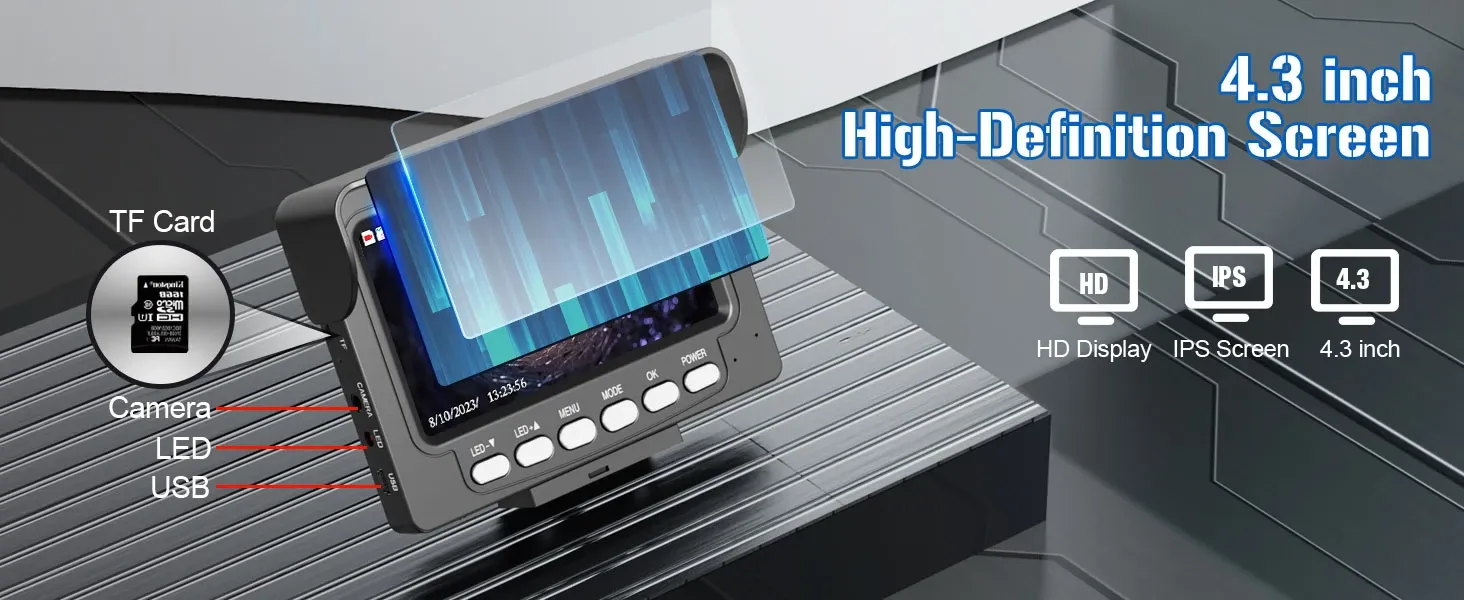

Don't underestimate how much screen quality matters when you're squinting at a 4.3-inch display in bright sunlight. IPS panels with 1080p resolution make a genuine difference — you can actually distinguish between a root intrusion and a displaced joint. Cheaper TN panels wash out the moment you tilt your viewing angle.

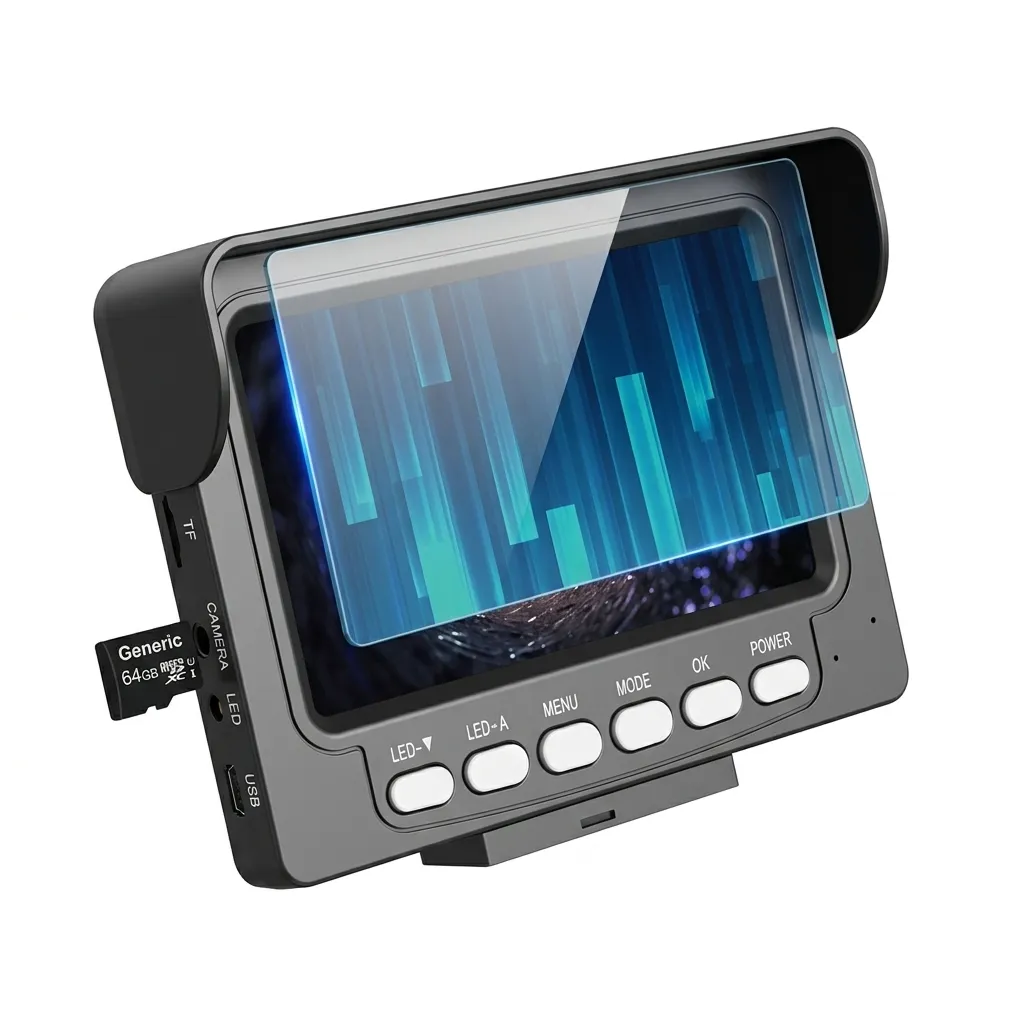

Recording capability is non-negotiable for professional use. You need evidence. Customers want to see what you've found. Insurers demand it. Look for systems with SD card slots or built-in storage that export standard video formats.

Waterproofing and Durability

Any camera going into a drain needs IP67 rating at minimum — that's full submersion protection to 1 metre for 30 minutes. For sewer work, IP68 is preferable. Check the rating applies to the camera head specifically, not just the monitor unit. I've seen cheaper units advertise IP67 for the handset while the actual probe is only IP65. That won't survive a flooded pipe — and you'll find out the hard way.

Build standards matter here. Products meeting requirements outlined by the British Standards Institution for electrical safety and ingress protection give you confidence the IP rating isn't just marketing.

Real-World ROI: When Buying Your Own Drain Camera Makes Financial Sense

The return on investment calculation is straightforward. If you're spending more than £300–£400 annually on professional drain surveys, owning equipment saves money from year one.

For Plumbers and Drainage Engineers

A CCTV drain camera isn't just a diagnostic tool — it's a revenue generator. Offering visual inspections as a service lets you charge £75–£150 per survey while your equipment cost per use drops below £5 after the first year. That's a margin most trades would bite your hand off for.

For Landlords and Property Managers

Managing 5+ properties? You'll encounter drainage issues at least quarterly. A mid-range industrial endoscope pays for itself within the first year and gives you the ability to diagnose problems before calling (and paying for) a specialist. In practice, it often means you don't need the specialist at all, because half the time it's just a grease buildup you can rod out yourself once you've confirmed the location.

For DIY Homeowners

Look, I know spending £150–£300 on an inspection camera seems steep for home use. But consider this: one professional call-out costs the same amount, and you'll use the camera for gutters, wall cavities, checking behind appliances, automotive work, and yes — drains. My own endoscope camera has probably saved me £600+ over three years across various household diagnostics. It's one of those tools that, once you have it, you wonder how you managed without.

So what's the catch? The main limitation is expertise. A camera shows you what's there — interpreting what you're seeing takes experience. Root intrusions, fractured pipes, displaced joints — these all look different, and a professional surveyor brings diagnostic knowledge alongside their equipment. That said, there are plenty of online resources and even the camera manufacturers' guides that help you identify common issues.

Key Takeaways

• Drain camera inspection cost in the UK ranges from £95–£350 per visit — London prices sit 40–75% higher than the national average in 2026.
• Break-even on owning equipment occurs within 3–5 professional call-outs — for active tradespeople, that's often within the first month.
• Match cable length to your typical job: 5m for internal waste pipes, 20–30m for residential drains, 40m+ for commercial runs.
• IP67 is the minimum waterproof rating for any camera head entering a drainage system — verify this applies to the probe, not just the monitor.
• Recording capability is essential for professional use — customers, insurers, and solicitors all expect video evidence of findings.
• Dual-lens and IPS screen technology has made sub-£200 handheld units genuinely useful for diagnostics that previously required £500+ equipment.
• For tradespeople, a drain camera is a revenue tool — charging £75–£150 per survey with equipment costs under £5 per use after year one delivers exceptional margins.
